SKYZONEFPV

SKYZONE M5 FPV Monitor with DVR

Regular price
$119.00
Regular price
Sale price
$119.00
Tax included. Shipping calculated at checkout.

In stock, Tax included.

    The SKYZONE M5F 5.8 GHZ FPV monitor with DVR is a high brightness 5-inch monitor integrated with 5.8Ghz 48 CH SteadyView receiver, the receiver merges two signals into one, avoids image tearing and rolling, make image more stable and clear. The wheel with classic skyzone UI made the goggles easy to use, the monitor support 1cell 18650 battery, easy to switch battery, also support 2-6S Lipo, easy to power on the field.

    ---5.8G 48CH Steadyview Receiver
    ---5inch LCD 800X480 highlight screen
    ---FOV up to 50°
    ---Bulit-in with heat-sink fan
    ---channel scanning
    ---Type C connector to upgarde the firmware or power goggle
    ---support Chinese and English
    ---Shuttle Wheel Contorl
    ---2S-6S wide voltage support
    ---MJPEG 60FPS DVR, SD Max 128Gb

    Built-in Steadyview Receiver:
    Diversity mode: The receiver will compare with 2 rssi, selects the strongest signal output Ifthe signal changes rapidly, the image will be tearingand rolling.

    MIX mode: Two signals are processed through complex circuits and algorithms, fuse the two signal into one, caused the more stable and clear image.

    Multiple power supply:
    Take your FPV experience to new heights with the SKYZONE M5 monitor and its versatile power options! Use a 2-6S LiPo via the XT60 power cable, USB-C power supply, or 18650 Lion battery to keep the action going.

    Specifcations:
    Screen: 900 Lum High brightness LCD
    Resolution: 800*480

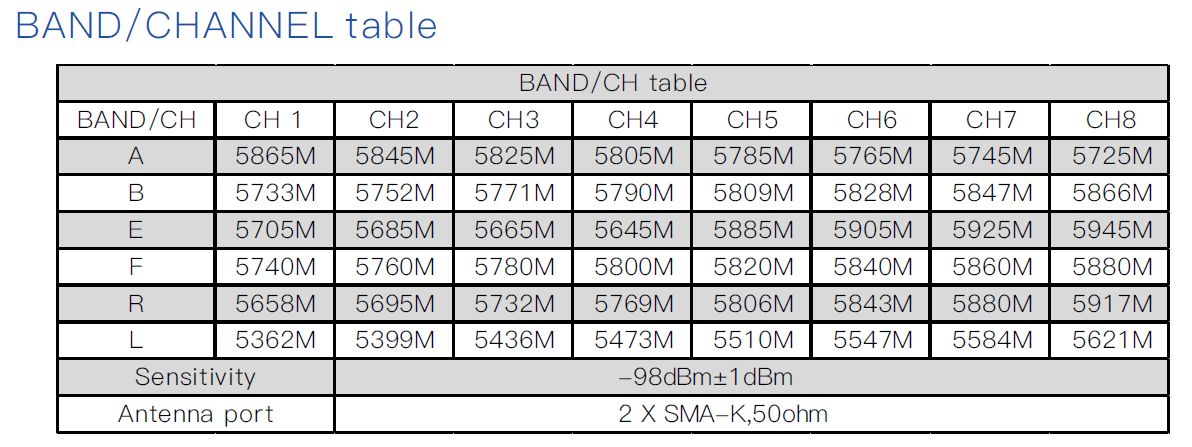

    Receiver: 5.8Ghz 48 CH SteadyView Fusion Receiver
    Language: Chinese/English
    Power: DC6.5-25.2V/USB 5V/18650 Lion
    Power Consumption: 12V/520mA 6.24W
    DVR: MJEPG 60FPS,SD Max 128Gb
    Endurance: 1.5 Hour (16850.3000mAh)

    Package Included:
    Monitor *1
    5.8GHz 2dB antennas X2
    Video/Audio Cable X1
    USB-C Cable X1
    XT60-DC5.5*2.1 Power Cable X1
    User Manual X1
